Specification

Product name

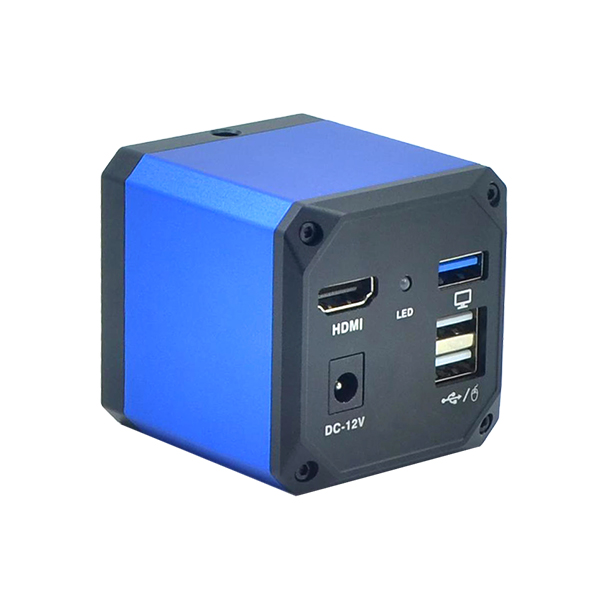

 D404

SENSOR

IMX678

Sensor size

1/1.8 inches

Pixel size

2.0*2.0μm

Output interface

HDMI+USB can output measurement at the same time

Frame rate

3840*2168@ 60FPS

Image storage method

USB flash drive or UVC connected to computer

Power source

DC-12V/1A

Function

Basic function

Built-in measurement, photography, video, image comparison, export report, automatic edge finding

Exposure

Automatic and manual, providing target brightness settings

white balance

Automatic and manual and ROI modes

Parameter settings

Contrast, saturation, brightness, sharpness, noise reduction, etc.

Center line

Supports 8 groups of straight lines, color and position adjustable

System software

Built-in measurement/external computer measurement system

Accessorie

Camera size

74*64*50mm

Packing size

145*137*70MM
